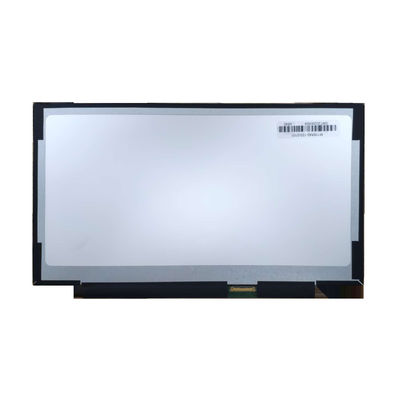

Industrail LCD panel 11.6 inch TFT LCD Module ODM/OEM 500 : 1

Place of Origin Shenzhen
Brand Name DYMONA
Certification CE,SGS,ROHS,ISO9001
Model Number M116X60-156-0601
Minimum Order Quantity 1pcs
Price Negotiable price
Packaging Details Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Supplier Type China Factory Directly Supply Input Voltage 3.3V
Application Industrial Contrast Ratio 500:1 (Typ.)
Service ODM /OEM /customization Display Size 11.6"
View Area 256.32(W)×144.18(H) Mm
High Light

256.32*144.18mm 11.6 LCD Screen


256.32*144.18mm TFT LCD Module


TFT LCD Module 800:1 Contrast Ratio

Leave a Message
Product Description

Industrail LCD panel 11.6 inch TFT LCD Module ODM/OEM 500 : 1


Product Description

Display size
Signal interface
eDP 30 pins Connector
1920(RGB)×1080, FHD
Display Area
256.32(W)×144.18(H) mm
300 cd/m² (Typ.)
Contrast Ratio
800 : 1
View angle
Support color
16.7M 50% NTSC
Refresh Rate
Voltage Supply
3.3 V
Panel Brand
Storage Temperature
-20 ~ 60 °C
Operating Temperature
0 ~ 50 °C
Used For
Laptop, Industrial

Industrail LCD panel 11.6 inch TFT LCD Module ODM/OEM  500 : 1 0

The 11.6 LCD Screen is 1366x768 with BOE CELL, perfect for any application that requires a bright and clear display. It has a 300 Cd/m² (Typ.) brightness and 60Hz frequency, making it ideal for video, Laptop, Industrial, and gaming applications. The LCD screen features an EDP 30pin interface and can be used within a temperature range of -20 to 60 °C. It is a China Factory Directly Supply product, providing you with an affordable and reliable product. The 11.6-inch LCD Screen is the perfect choice for a bright and reliable display.




We have provided hundreds of LCD display modules for:

Automotive products,

Medical equipments,

Consumer electronics,

IoT products,

smart wearable devices,


smart home applications,

white goods,

industrial and integration equipment,

communication devices,

Digital signage and displays etc.


Industrail LCD panel 11.6 inch TFT LCD Module ODM/OEM  500 : 1 1

Industrail LCD panel 11.6 inch TFT LCD Module ODM/OEM  500 : 1 2



More Customization


Industrail LCD panel 11.6 inch TFT LCD Module ODM/OEM  500 : 1 3Industrail LCD panel 11.6 inch TFT LCD Module ODM/OEM  500 : 1 4

Please let us know your requirements on Screen:

1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference. we will quote the same model # or recommend alternatives when we can't provide the exact model or when we think there is a better choice for you!

Tip: all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC

interface can be customized according to your requirements.


About the US


DMN DISPLAY was established in 2014.

With two factories: One located in Shenzhen, China.

Another Factory is located in Anhui Province, China.

Our business scope covers TFT LCD displays /

LCM products/ Capacitive touch screen, etc production

and sales.


Industrail LCD panel 11.6 inch TFT LCD Module ODM/OEM  500 : 1 5


Industrail LCD panel 11.6 inch TFT LCD Module ODM/OEM  500 : 1 6


Support and Services


  • Technical Support:
    • Provide online technical support through email and phone
    • Guidance on product installation and configuration
    • Software and hardware troubleshooting assistance
    • Fault diagnostics and repair advice
  • Service:
    • 1-year warranty on all products
    • Regular maintenance and servicing of products
    • Replacement of faulty parts
    • General advice and guidance on product usage
    • Onsite repair and installation services



Packing and Shipping


Antistatic bag + Bubble bag + Foam box + Carton box





1. Where can I get the datasheet, initialization code, and other technical files?
Please contact our sales directly or send me an email, and we will send the datasheet by mail.

2. Is there a Touch Panel (Touch screen) on the display?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need it.
Resistive touch panel - RTPs are the most common and lowest-cost touch panel technology. They are activated by contact with any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.

Capacitive touch panel – Allows multi-touch operation as seen on smart cell phones or tablets, and allows more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.

3. Is there a possibility of making a brighter display?
Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high
brightness backlight for you. And make it sunlight readable.

4. How to Understand Stock for Sale?
Stock levels are based on the item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact our sales for price, stock availability, and lead time

5. Never End of Supply, Our Long-term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. DYMONA gives the promise to every customer of every product we sell on this website. We promise a long-term continuity of supply and will never end supply.
Some controller ICs may stop production, we'll try our efforts to find completely compatible ones. If the equivalent is
unavailable, we'll make the new tooling and use the most similar IC as a replacement. So you don't have to worry even if your research time is very long.

6. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.

7. I am new to developing LCD modules.
Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get started.
