30 Pins Connector Laptop LCD Display 14 Inch OEM ODM
| Place of Origin | China |
|---|---|
| Brand Name | DYMONA |
| Model Number | MxxxxX60-156-0601 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Inputs | EDP (1 Lane) , EDP1.2 , RBR (1.62G/lane) , 30 Pins Connector | Resolution | 1920(RGB)×1080, FHD |
|---|---|---|---|
| Display Colors | 262K | Viewing Angle | 85/85/85/85 |
| Service | ODM, OEM, Customization | Display Mode | HADS, Normally Black, Transmissive |
| Brightness | 250 Cd/m² | Best View On | Symmetry |
| High Light | 30 Pins Connector Laptop LCD Display,lcd 14 inch OEM ODM,Laptop LCD Display 14Inch OEM ODM |
||
Product Description

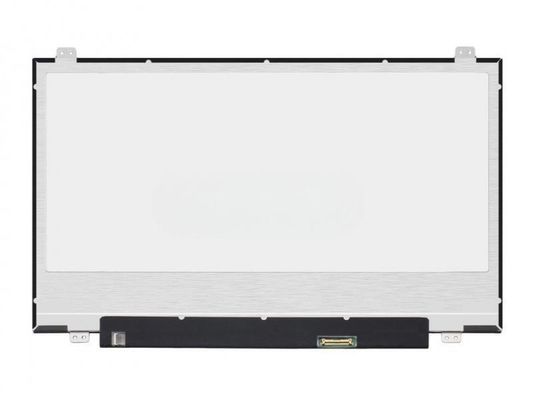

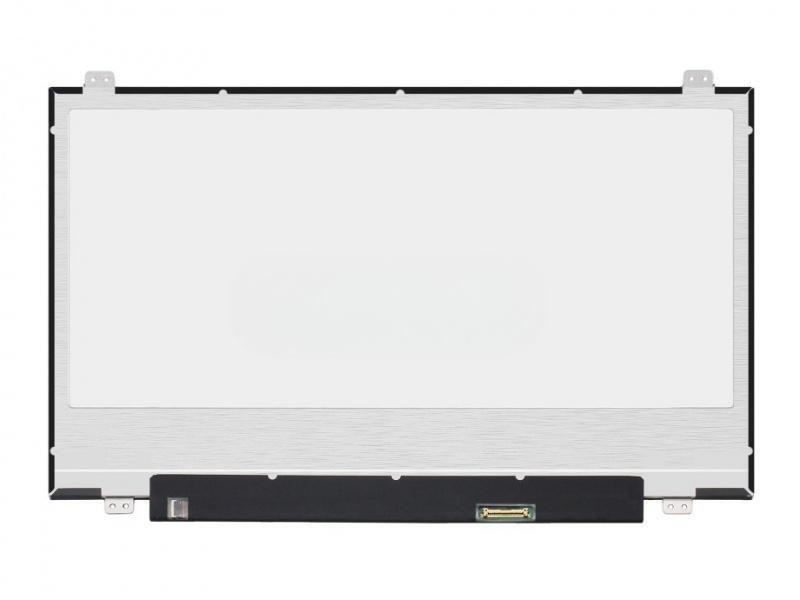

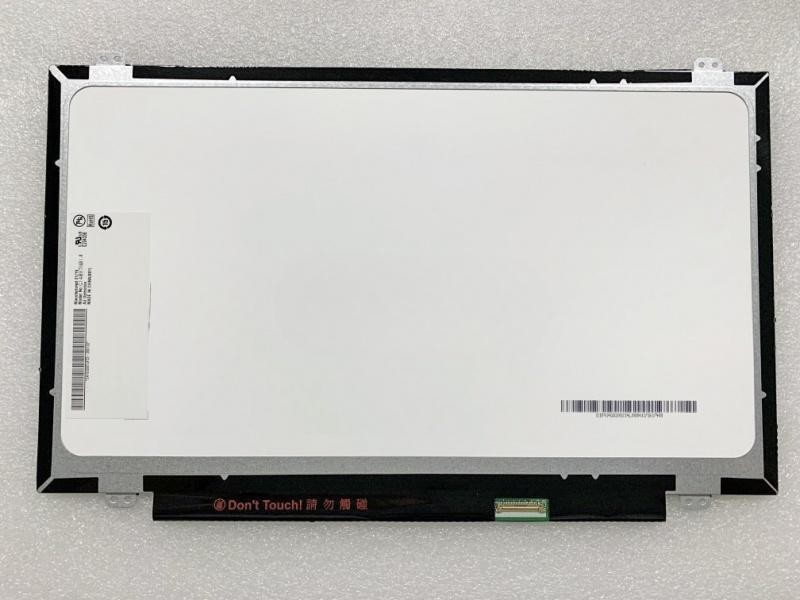

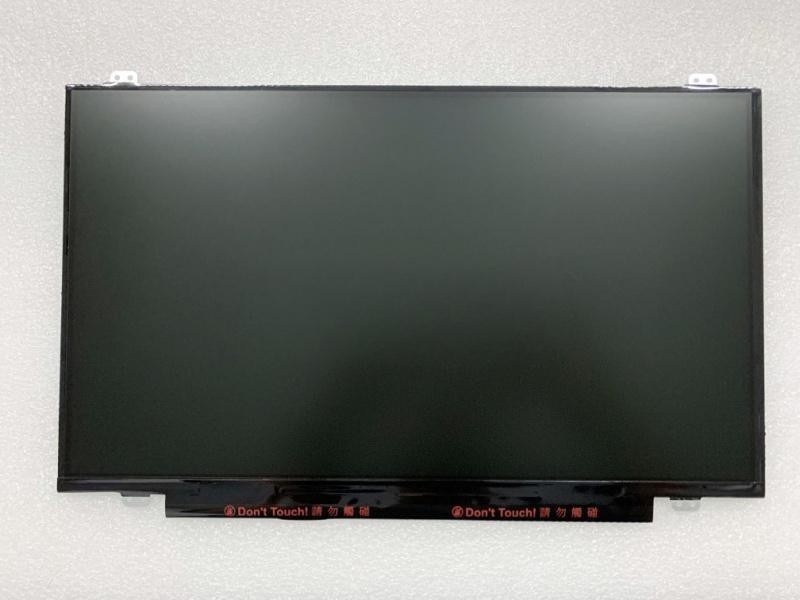

30 Pins Connector ODM Laptop LCD Display
Product Description:
The 14 Inch LCD Display is a laptop LCD display specifically designed for modern laptops. It has a high resolution of 1920(RGB)×1080, FHD, allowing users to enjoy the visual feast of high definition images. The display colors are up to 262K, which is able to show delicate color transitions. In terms of temperature, the operating temperature range is 0 ~ 50 °C while the storage temperature range is -20 ~ 60 °C. In terms of inputs, it supports EDP (1 Lane) , EDP1.2 , RBR (1.62G/lane) and 30 Pins Connector, making it compatible with a wide variety of devices. Moreover, it is designed to be lightweight and portable, making it great for people who are always on the go.
Features:
- Product Name: 14 Inch LCD Display
- Storage Temp: -20 ~ 60 °C
- Input Voltage: 3.3V (Typ.)
- Display Colors: 262K
- Size: 14.0"
- Inputs: EDP (1 Lane), EDP1.2, RBR (1.62G/lane), 30 Pins Connector
- Laptop LCD Display: Yes
- LCD Display Module: Yes
Technical Parameters:
| Product Attributes | Specification |
|---|---|
| Service | ODM, OEM, Customization |
| Input Voltage | 3.3V (Typ.) |
| Storage Temp | -20 ~ 60 °C |
| Panel Brand | BOE |
| Active Area | 309.31(W)×173.99(H) Mm |
| Application | Laptop |
| Size | 14.0" |
| Touch Screen | Without |
| Brightness | 250 Cd/m² |
| Contrast Ratio | 800:1 |
Applications:
The DYMONA MxxxxX60-156-0601 14 Inch LCD Display module is a FHD IPS Screen with a 1920x1080 resolution and a 30ms response time. It provides an immersive viewing experience with a symmetry view and wide viewing angles. The module is designed with a storage temp of -20 ~ 60 °C and is ideal for a range of applications such as outdoor displays, embedded systems, and gaming consoles. It offers ODM, OEM, and customization services for customers and is perfect for industrial, commercial, and consumer applications.
Customization:
14 Inch LCD Display
Brand Name: DYMONA
Model Number: MxxxxX60-156-0601
Place of Origin: China
Panel Brand: BOE
Best View on: Symmetry
Application: Laptop
Size: 14.0"
Color Gamut: 45% NTSC
FHD IPS Screen, Laptop LCD Display, TFT LCD Display
Support and Services:
Technical support and services for 14 Inch LCD Display include:
- 24/7 technical assistance via phone, chat, or email.
- On-site installation and maintenance.
- Troubleshooting and system optimization.
- Free software updates.
- Product replacement or repair within the warranty period.
Packing and Shipping:
Packaging and Shipping for 14 Inch LCD Display
The 14 Inch LCD Display will be packaged and shipped with the following instructions:
- The LCD Display will be securely packaged in a box that is designed specifically for the product.
- The box will include appropriate cushioning materials to protect the LCD during transit.
- The package will be shipped via a reliable shipping carrier.
FAQ:
A1: The Brand Name of this 14 Inch LCD Display is DYMONA.
A2: The Model Number of this 14 Inch LCD Display is MxxxxX60-156-0601.
A3: This 14 Inch LCD Display is manufactured in China.
A4: This 14 Inch LCD Display is 14 inch in size.
A5: This 14 Inch LCD Display is a Liquid Crystal Display (LCD).
