TFT LCD Screen 1000 Nits 48 Inch TFT Display replacement of BOE DV480FBM-N01

Place of Origin Shenzhen
Brand Name DYMONA
Certification CE,SGS,ROHS,ISO9001
Model Number MxxxX-156-0601
Minimum Order Quantity 1pcs
Price Negotiable price
Packaging Details Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Brightness 1000 Cd/m² Application For Outdoor Display Of Hightlight
Response Time 10 (Typ.)(Tr+Td) Origin Place Shenzhen
Signal Interface V-by-One 8 Lane , 51 Pins
High Light

M104GNX1 R1 TFT LCD Screen


M104GNX1 R1 48 Inch LCD


1000Nits 48 Inch LCD TFT Display

Leave a Message
Product Description

TFT LCD Screen 1000 Nits 48 Inch TFT Display replacement of BOE DV480FBM-N01


Product Description

Display size
Supplier Type
Signal interface
V-by-One 8 lane , 51 pins
3840(RGB)×720, 81PPI
Active Area
1194.05(W)×223.884(H) mm
1000 cd/m² (Min.)
Contrast Ratio
1000 : 1
View angle
89/89/89/89 (Typ.)(CR≥10)
Voltage Supply
12.0V (Typ.)
Refresh Rate
Operating Temperature
0 ~ 50 °C
Storage Temperature
-20 ~ 60 °C

LCD Screen is a 48'' TFT LCD Screen featuring a high brightness of 1000cd/m2, a contrast ratio of 1000:1, and a backlight of 50K hours WLED. The high brightness and contrast ratio ensures great image clarity, while WLED backlight gives a long life to the LCD Panel. and a variety of applications, such as digital signage, medical imaging, industrial control, etc.

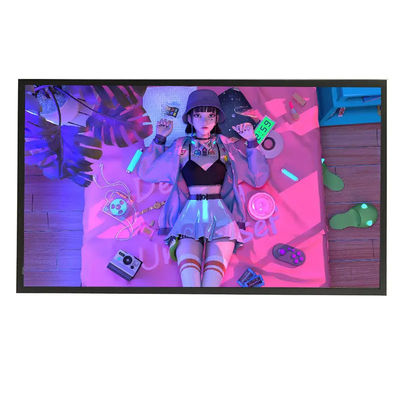

TFT LCD Screen 1000 Nits 48 Inch TFT Display replacement of BOE DV480FBM-N01 0

Support and Services


  • Technical Support:
    • Provide online technical support through email and phone
    • Guidance on product installation and configuration
    • Software and hardware troubleshooting assistance
    • Fault diagnostics and repair advice
  • Service:
    • 1-year warranty on all products
    • Regular maintenance and servicing of products
    • Replacement of faulty parts
    • General advice and guidance on product usage
    • Onsite repair and installation services


More Customization

TFT LCD Screen 1000 Nits 48 Inch TFT Display replacement of BOE DV480FBM-N01 1

Please let us know your requirements on Screen:

1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference. we will quote the same model # or recommend alternatives when we can't provide the exact model or when we think there is a better choice for you!

Tip: all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC

interface can be customized according to your requirements.





We have provided hundreds of LCD display modules for:

Automotive products,

Medical equipments,

Consumer electronics,

IoT products,

smart wearable devices,


smart home applications,

white goods,

industrial and integration equipment,

communication devices,

Digital signage and displays etc.

TFT LCD Screen 1000 Nits 48 Inch TFT Display replacement of BOE DV480FBM-N01 2TFT LCD Screen 1000 Nits 48 Inch TFT Display replacement of BOE DV480FBM-N01 3


About the US


DMN DISPLAY was established in 2014.

With two factories: One located in Shenzhen, China.

Another Factory is located in Anhui Province, China.

Our business scope covers TFT LCD displays /

LCM products/ Capacitive touch screen, etc production

and sales.


TFT LCD Screen 1000 Nits 48 Inch TFT Display replacement of BOE DV480FBM-N01 4


1, Small orders accepted

2, Factory direct export

3, With 10 years of professional production experience as a manufacturer of LCD Module

4, Pre-sales & after-sales service

5, Prompt delivery

6, Green product

7, Strong researching and developing team

8, Experienced staff

9,ISO9001, ISO14001,ROHS

TFT LCD Screen 1000 Nits 48 Inch TFT Display replacement of BOE DV480FBM-N01 5



1. Where can I get the datasheet, initialization code, and other technical files?
Please contact our sales directly or send me an email, and we will send the datasheet by mail.

2. Is there a Touch Panel (Touch screen) on the display?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need it.
Resistive touch panel - RTPs are the most common and lowest-cost touch panel technology. They are activated by contact with any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.

Capacitive touch panel – Allows multi-touch operation as seen on smart cell phones or tablets, and allows more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.

3. Is there a possibility of making a brighter display?
Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high
brightness backlight for you. And make it sunlight readable.

4. How to Understand Stock for Sale?
Stock levels are based on the item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact our sales for price, stock availability, and lead time

5. Never End of Supply, Our Long-term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. DYMONA gives the promise to every customer of every product we sell on this website. We promise a long-term continuity of supply and will never end supply.
Some controller ICs may stop production, we'll try our efforts to find completely compatible ones. If the equivalent is
unavailable, we'll make the new tooling and use the most similar IC as a replacement. So you don't have to worry even if your research time is very long.

6. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.

7. I am new to developing LCD modules.
Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get started.
