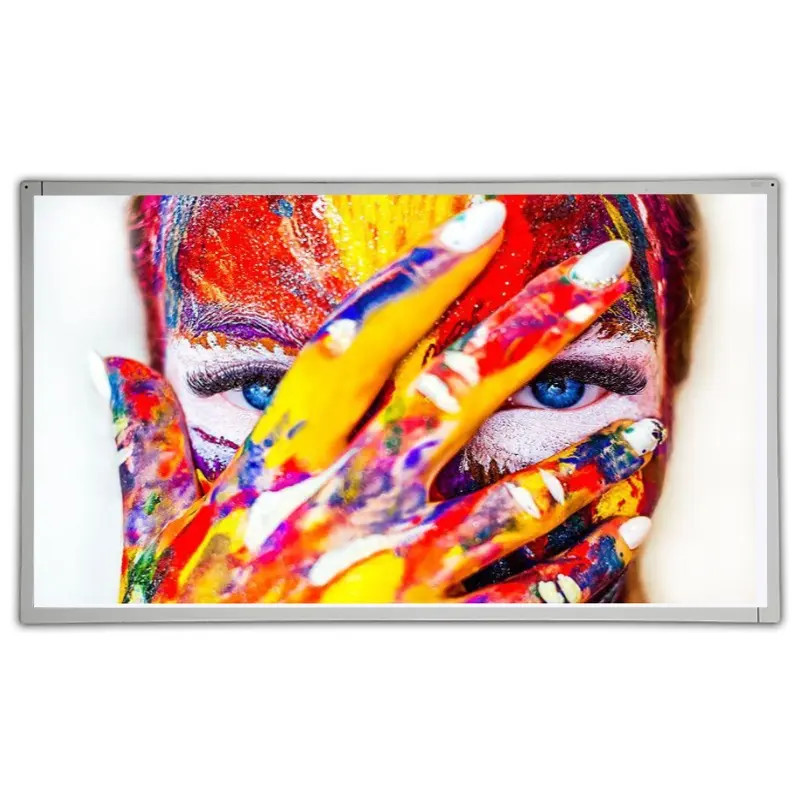

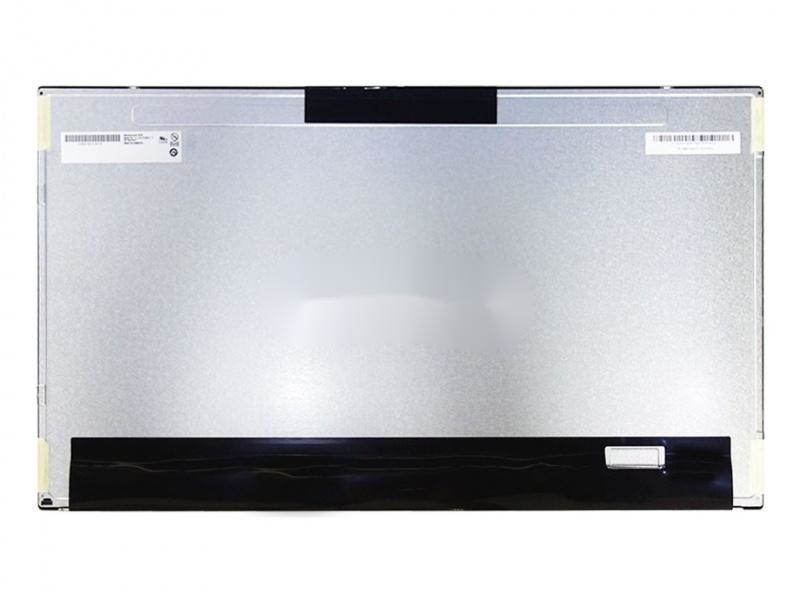

23.8" 5V TFT LCD Display Hard Coating 3H Industrial TFT Display

Place of Origin Shenzhen
Brand Name DYMONA
Certification CE,SGS,ROHS,ISO9001
Model Number MxxxxxX60-156-0601
Minimum Order Quantity 1pcs
Price Negotiable price
Packaging Details Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time 5-7 days
Payment Terms L/C, T/T,Payyal
Supply Ability 1KK pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Operating Temperature 0 ~ 50 °C Resolution 1920(RGB)×1080, FHD
Size 23.8" Pixel Format RGB Vertical Stripe
Panel Brand BOE Color Depth 16.7M 72% NTSC
Application Desktop Monitor Input Connector LVDS , 30 Pins Connector
High Light

23.8" 5V TFT LCD Display


Hard Coating 3H Industrial TFT Display


23.8" 5V Industrial TFT Display

Leave a Message
Product Description

23.8" 5V TFT LCD Display Hard Coating 3H for Industrial Applications

Product Description:

TFT LCD Display is a color TFT LCD display module with a resolution of 1920(RGB)×1080, FHD, and a contrast ratio of 1000:1. This display is specially designed for desktop monitor and offers an excellent viewing angle of 89/89/89/89. It is constructed with the world-renowned BOE panel brand, providing superior image quality and performance. It is widely used in various applications, such as home theater systems, gaming consoles, digital signage, and more. With its highly advanced technology, it ensures a perfect visual experience for its users. With its cutting-edge design and outstanding features, TFT LCD Display is an excellent choice for any application.



  • Product Name: TFT LCD Display
  • Operating Temperature: 0 ~ 50 °C
  • Storage Temp: -20 ~ 60 °C
  • Pixel Format: RGB Vertical Stripe
  • Service: ODM , OEM , Customization
  • Brightness: 250 Cd/m2

Technical Parameters:

Service Resolution
ODM , OEM , Customization 1920(RGB)×1080, FHD
Operating Temperature Panel Brand
0 ~ 50 °C BOE
Brightness Color Depth
250 Cd/m2 16.7M 72% NTSC
Application Contrast Ratio
Desktop Monitor 1000:1
Surface Treatment Display Type
Antiglare, Hard Coating (3H) TFT / IPS


DYMONA TFT LCD Display – MxxxxxX60-156-0601

The DYMONA MxxxxxX60-156-0601 TFT LCD Display is a high-quality touch screen module with a 60Hz signal type, 1000:1 contrast ratio, and 16.7M color depth. This LCD display is perfect for a variety of applications, including digital signage, gaming machines, and industrial automation.
The MxxxxxX60-156-0601 features a LVDS 30 pins connector and an RGB vertical stripe pixel format, providing a crisp and vivid image. With a 72% NTSC color gamut, this monitor is great for displaying a wide range of colors.
The MxxxxxX60-156-0601 is perfect for applications that require a high-quality display, such as medical imaging, automotive user interfaces, and point-of-sale machines. This TFT LCD display is also ideal for high-end gaming since it offers a fast response time and a superior image quality.
The DYMONA MxxxxxX60-156-0601 TFT LCD Display is made in Shenzhen, providing customers with reliable and high-quality products.



Customized TFT LCD Displays from DYMONA

DYMONA’s TFT LCD displays are the perfect solution for your project. Our displays are customizable to fit your specific needs. Our model number MxxxxxX60-156-0601 has the following features:

  • Brand Name: DYMONA
  • Model Number: MxxxxxX60-156-0601
  • Place of Origin: Shenzhen
  • Touch Panel: Without
  • Active Area: 527.04(W)×296.46(H) Mm
  • Color Depth: 16.7M 72% NTSC
  • Signal Type: 60Hz
  • Contrast Ratio: 1000:1

We are a reliable TFT LCD display module supplier and have the experience and expertise to help you find the right display panel for your project.


Support and Services:

We provide technical support and service for TFT LCD Display products. Our customer service team is available to help you 24/7. We provide comprehensive technical support, including troubleshooting, diagnosis, repair and maintenance. Our skilled technicians can help you resolve any technical issues and ensure your products are running smoothly. We also offer installation and setup services for new purchases. If you need any assistance, please don’t hesitate to contact us.


Packing and Shipping:

Packaging and Shipping for TFT LCD Display

The TFT LCD display product should be packaged carefully to ensure it arrives safely at its destination. Each display should be wrapped in foam or bubble wrap, then placed in a box with packing peanuts or other cushioning material. A cardboard box should be used to provide additional protection and the box should be labeled appropriately.
Once the product is packaged, it should be shipped with a reliable courier service. It is important to check the courier's insurance policies as well as their delivery times before selecting a service. Tracking information should be provided for the customer to ensure they can track the package throughout its journey.



1. Where can I get the datasheet, initialization code and other technical files ?

Please contact with our sales directly or send me a email , we will send the datasheet by mail.

2. Is there a Touch Panel (Touch screen) on the display ?

We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.
Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any
object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental

3. Is there a possibility to make a more brighter display?

Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high
brightness backlight for you. And make it sunlight readable.

4. How to Understand Stock for Sale?

Stock levels are based on item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after
you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact with our sales
for price, stock availability and lead time

5. Never End of Supply, Our Long-term Continuity Supply Warranty

We understand you probably worry whether we still offer the display after your long development time. DYMONA gives the promise to every customer to every product we sell on this website. We promise the long terms continuity supply and would never end supply.
Some controller IC may stop the production, we'll try our efforts to find the completely compatible ones. If the equivalent is
unavailable, we'll make the new tooling and use the most similar IC as replacement. So you don't have to worry even your research time is very long.

6. What is covered under warranty and for how long?

All products are covered under our limited warranty, which provides all products are free of functional defects for a period of
one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.

7. I am new for developing LCD modules.

Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will
send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get
Our business scope covers LCD /LCM Module development, single-chip production and materials processing.
In a span of more than 10 years, we have developed thousands of LCD and LCM products for Industrial,home appliance consumer electronics, medical equipment and other applications.
Please let us know your requirements on Screen:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you!
