400Cd/m2 27 Inch LCD Screen With 30 Pins Connector RGB Vertical Stripe

Place of Origin Shenzhen
Brand Name DYMONA
Certification CE,SGS,ROHS,ISO9001
Model Number MxxxxxHVN02.1
Minimum Order Quantity 1pcs
Packaging Details Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Touch Screen Without Application Industrial , Medical Imaging
Service ODM, OEM, Customization Brightness 400 Cd/m2
Contrast Ratio 1000:1 Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C Type LCD Screen TFT-LCD, LCM
High Light

400Cd/M2 27 Inch LCD Screen


RGB Vertical Stripe 27 Inch LCD


30 Pins Connector 27 Inch LCD

Leave a Message
Product Description

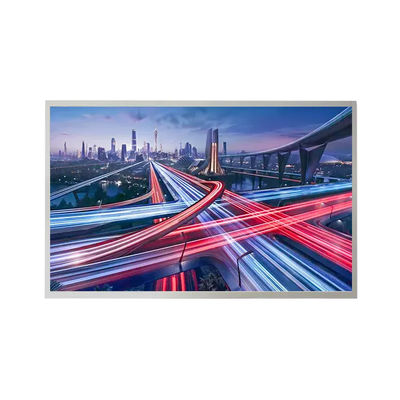

27 Inch LCD Screen With 30 Pins Connector RGB Vertical Stripe

Product Description:

This 27 Inch LCD Screen is an IPS LCD panel with FHD resolution for a 27 inch LCD display. It offers excellent viewing angle of 89/89/89/89 (Typ.)(CR≥10) for an incredibly sharp and clear display. Featuring a 23.8" size, this LCD panel is suitable for a wide range of industrial and medical imaging applications. With 16.7M colors, this AUO LCD panel will bring bright, vivid and accurate color to your display.



  • Product Name: 27 Inch LCD Screen
  • Touch Screen: Without
  • Type: LCD Screen TFT-LCD, LCM
  • Contrast Ratio: 1000:1
  • IPS LCD Panel: Yes
  • IPS Full Viewing LCD Screen: Yes
  • LCD Display: 27 inch LCD Screen
  • Service: ODM, OEM, Customization
  • Application: Industrial, Medical Imaging

Technical Parameters:

Product Property Value
Storage Temperature -20 ~ 60 °C
Size 23.8"
Brightness 400 Cd/m2
Color Gamut 70% NTSC
Pixel Format RGB Vertical Stripe
Power Supply 5.0V
Touch Screen Without
Response Time 14 (Typ.) (G To G)
Type LCD Screen TFT-LCD, LCM
Service ODM, OEM, Customization
Ips Full Viewing Lcd Screen 1920*1080


The 27 Inch LCD Screen from DYMONA is a high performance TFT LCD display that is perfect for a variety of applications. The MxxxxxHVN02.1 model features a 27 inch panel with a 1000:1 contrast ratio, 14 (Typ.)(G To G) response time, and operates at temperatures between 0 ~ 50 °C. It offers LVDS and 30 Pins Connector inputs. This 27 inch LVDS TFT LCD panel is ideal for applications such as digital signage, gaming, medical imaging, and more. It is also ODM, OEM, and customization friendly. DYMONA is a trusted manufacturer of 27 inch LCD screens from Shenzhen.



Customized 27 Inch LCD Screen from DYMONA

Brand Name: DYMONA

Model Number: MxxxxxHVN02.1

Place of Origin: Shenzhen

Power Supply: 5.0V

Application: Industrial, Medical Imaging

Response Time: 14 (Typ.)(G To G)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)

Treatment: Antiglare

1920x1080 Resolution Manufacturer, ips lcd panel, Tft Lcd Display


Support and Services:

This 27 Inch LCD Screen comes with a technical support and service guarantee. Customers can access technical support via email, phone, or online chat. Our knowledgeable staff will provide assistance with troubleshooting any hardware or software related issues. We also offer a comprehensive warranty on the product to ensure it meets your expectations. Any parts that may require replacement will be provided free of charge. In addition, we provide regular maintenance and updates to ensure the product remains in optimal working condition.


Packing and Shipping:

Packaging and Shipping for 27 Inch LCD Screen:

  • The LCD Screen will be securely packaged in a custom designed box.
  • The box will be strong enough to ensure safe shipping.
  • The box will be labeled with the product name, quantity and destination.
  • The product will be shipped via a reliable courier service.
  • The courier service will provide tracking information.


1. Where can I get the datasheet, initialization code and other technical files ?

Please contact with our sales directly or send me a email , we will send the datasheet by mail.

2. Is there a Touch Panel (Touch screen) on the display ?

We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.


Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any
object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental

3. Is there a possibility to make a more brighter display?

Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high
brightness backlight for you. And make it sunlight readable.

4. How to Understand Stock for Sale?

Stock levels are based on item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after
you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact with our sales
for price, stock availability and lead time

5. Never End of Supply, Our Long-term Continuity Supply Warranty

We understand you probably worry whether we still offer the display after your long development time. DYMONA gives the promise to every customer to every product we sell on this website. We promise the long terms continuity supply and would never end supply.
Some controller IC may stop the production, we'll try our efforts to find the completely compatible ones. If the equivalent is
unavailable, we'll make the new tooling and use the most similar IC as replacement. So you don't have to worry even your research time is very long.

6. What is covered under warranty and for how long?

All products are covered under our limited warranty, which provides all products are free of functional defects for a period of
one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.

7. I am new for developing LCD modules.

Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will
send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get


Our business scope covers LCD /LCM Module development, single-chip production and materials processing.

In a span of more than 10 years, we have developed thousands of LCD and LCM products for Industrial,home appliance consumer electronics, medical equipment and other applications.


Please let us know your requirements on Screen:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you!
