Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement

Place of Origin Shenzhen
Brand Name DYMONA
Certification CE,SGS,ROHS,ISO9001
Model Number MxxxX-156-0601
Minimum Order Quantity 1pcs
Price Negotiable price
Packaging Details Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Touch Screen Without Resolution 800*1280
Brightness 250 Cd/㎡ Input Signal MIPI,40pins
Display Color 16.7M Pixel Pitch 37.6*112.8 Um
Origin Place Shenzhen Backlight LED Driver
Leave a Message
Product Description

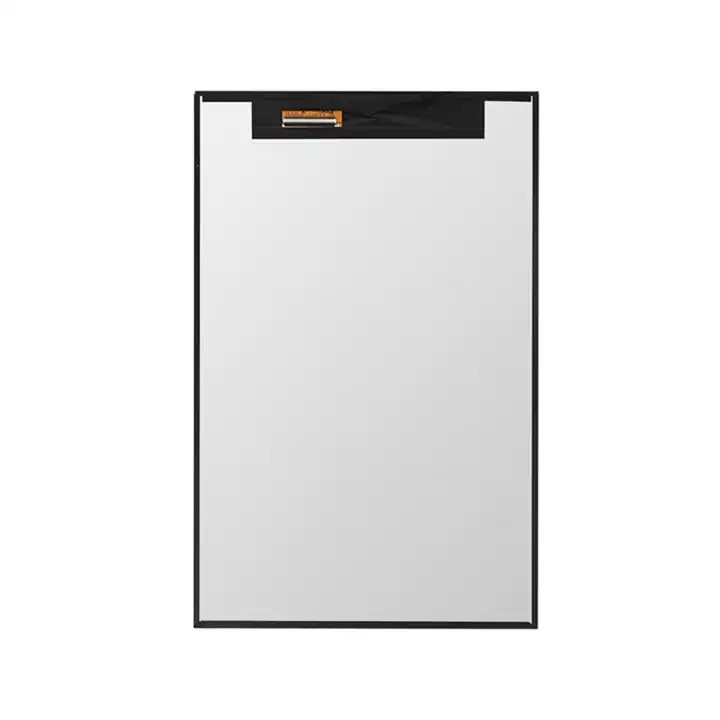

Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement





Product Description

Display size
10.1"

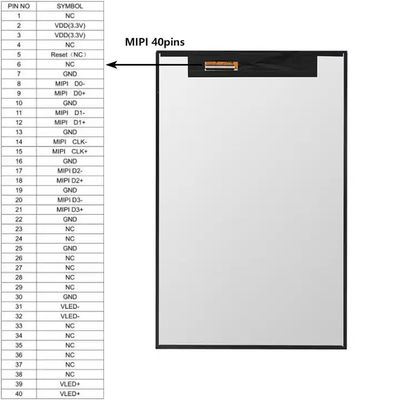

Signal interface
MIPI 40pins
Resolution
800*1280
Back-Light
50K hours
Brightness
1000 cd/m² (Typ.)
Contrast Ratio
250 : 1
View angle
88/88/88/88
Support color
16.7M
Warranty
1 year
Refresh Rate
60Hz
Voltage Supply
3.3 V
CELL Brand
BOE
operation Temperature
-20 ~ +60 °C
Storage Temperature
-30 ~ +70 °C
Used For
Industrial display ,laptop and smart home applications

1, MIPI Interface: The display features a MIPI (Mobile Industry Processor Interface) interface, which is widely used in mobile devices and offers high-speed data transfer rates. The MIPI interface enables seamless communication between the display and the laptop's graphics processing unit (GPU), ensuring smooth and efficient display performance.
2, Compatibility: The display is designed as a laptop screen replacement, offering compatibility with specific laptop models or as a general-purpose display for DIY laptop projects. It can be integrated into existing laptop designs or used for repairs and replacements.
3, Versatile Applications: The TFT 10.1 LCD display with an 800x1280 resolution and MIPI interface is suitable for various laptop applications. It can be used for web browsing, document editing, multimedia playback, casual gaming, and other everyday computing tasks.
4, Cost-Effective Solution: As a laptop screen replacement option, the TFT 10.1 LCD display offers a cost-effective solution compared to replacing the entire laptop. It allows users to upgrade or repair their laptops without incurring significant expenses.
5, DIY Projects: The display's compatibility and compact size make it suitable for DIY laptop projects or building customized portable computing devices. It provides flexibility for users who want to create their own laptops or portable computing solutions.
Overall, the TFT 10.1 LCD display with an 800x1280 resolution and MIPI interface offers a compact size, high resolution, compatibility, and versatility for laptop applications. It provides a cost-effective solution for laptop screen replacements, while also offering opportunities for DIY projects and customization.



Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 0



More details

Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 1Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 2



Applications



Automotive products,

Medical equipments,

Consumer electronics like laptops, monitors etc

IoT products,

Smart wearable devices,

PDA, POS,

Smart home applications,

White goods,

Industrial and integration equipment,

Communication devices,

Digital signage and displays etc.

Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 3

Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 4



More Customization



Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 5

Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 6Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 7

Custom Process
process detail
1> Customer requirements: Size, resolution, brightness, interface, CTP specification, and other requirements, or to draw, a sample for evaluation.
2> Supplier evaluation and offer solutions Evaluate and propose solutions according to customer requirements.
3> Communicate and confirm solutions The customer confirmed the solution
4> Provide quotation and confirm payment Provide reasonable and advantageous tooling cost quotations and confirm product unit prices. The customer pays a sample fee
5> Confirm the drawing Confirm the final version drawing according to the customer's request or the drawings provided. and sign back
6> Production samples Producing samples according to the drawings confirmed by both parties
7> Sample confirmed Deliver samples to customers for confirmation
8> Sample debugging and modification If necessary, technical support will be provided for debugging or modification of samples
9> Production Confirm the final order quantity and unit price of the customer, and then arrange production according to the confirmed samples within the agreed time.
10> Deliver Product delivery according to customer requirements or industry standards

Please let us know your requirements on Screen:

1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference. we will quote the same model # or recommend alternatives when we can't provide the exact model or when we think there is a better choice for you!


Tip: all of our products can be with or without touch, whatever you choose. Backlight brightness and

interface can be customized according to your requirements.





About the Us



DMN DISPLAY was established in 2014.

With two factories: One located in Shenzhen, China.

Another Factory is located in Anhui Province, China.


Our business scope covers TFT LCD displays /

LCM products/ Capacitive touch screen, etc production

and sales.



Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 8

Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 9





Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 10



Support and Services



  • Technical Support:
    • Provide online technical support through email and phone
    • Guidance on product installation and configuration
    • Software and hardware troubleshooting assistance
    • Fault diagnostics and repair advice
    •
  • Service:
    • 1-year warranty on all products
    • Regular maintenance and servicing of products
    • Replacement of faulty parts
    • General advice and guidance on product usage
    • Onsite repair and installation services
      Tft 10.1 LCD display 800*1280 MIPI 10inch laptop screen replacement 11





Packing and Shipping



Antistatic bag + Bubble bag + Foam box + Carton box





FAQ



1. Where can I get the datasheet, initialization code, and other technical files?
Please contact our sales directly or send me an email, and we will send the datasheet by mail.

2. Is there a Touch Panel (Touch screen) on the display?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need it.
Resistive touch panel - RTPs are the most common and lowest-cost touch panel technology. They are activated by contact with any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.

Capacitive touch panel – Allows multi-touch operation as seen on smart cell phones or tablets, and allows more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.

3. Is there a possibility of making a brighter display?
Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high
brightness backlight for you. And make it sunlight readable.

4. How to Understand Stock for Sale?
Stock levels are based on the item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact our sales for price, stock availability, and lead time

5. Never End of Supply, Our Long-term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. DYMONA gives the promise to every customer of every product we sell on this website. We promise a long-term continuity of supply and will never end supply.
Some controller ICs may stop production, we'll try our efforts to find completely compatible ones. If the equivalent is
unavailable, we'll make the new tooling and use the most similar IC as a replacement. So you don't have to worry even if your research time is very long.

6. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.

7. I am new to developing LCD modules.
Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get started.
