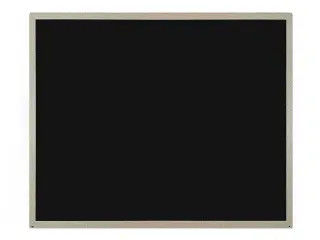

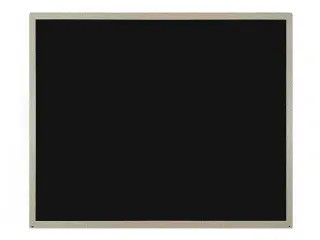

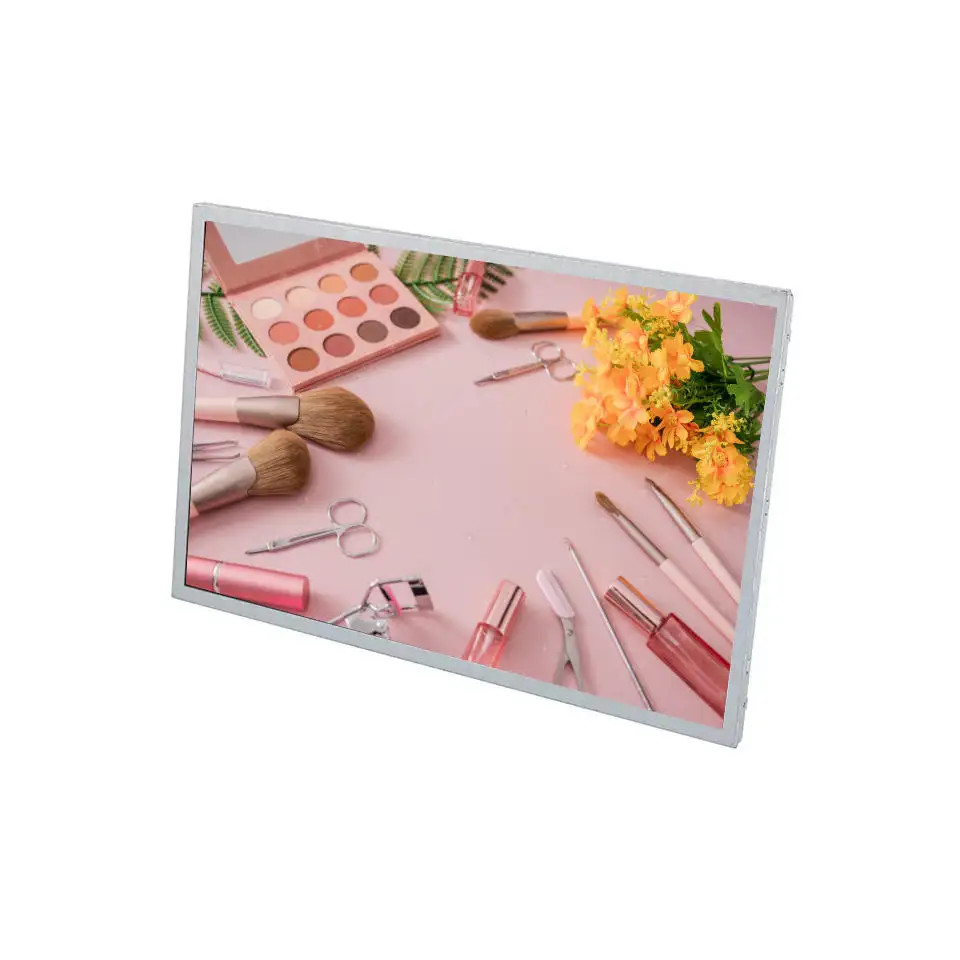

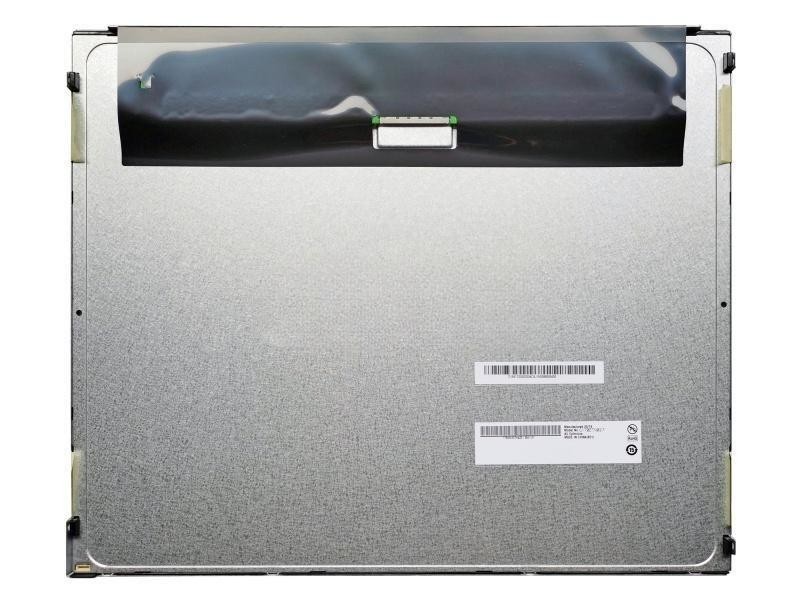

640x480 17 Inch LCD TFT Display 800:1 Contrast Ratio No Touchscreen

  • 640x480 17 Inch LCD TFT Display 800:1 Contrast Ratio No Touchscreen
  • 640x480 17 Inch LCD TFT Display 800:1 Contrast Ratio No Touchscreen
  • 640x480 17 Inch LCD TFT Display 800:1 Contrast Ratio No Touchscreen
  • 640x480 17 Inch LCD TFT Display 800:1 Contrast Ratio No Touchscreen
Place of Origin Shenzhen
Brand Name DYMONA
Certification CE,SGS,ROHS,ISO9001
Model Number MxxxxX60-156-0601
Minimum Order Quantity 1pcs
Price Negotiable price
Packaging Details Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Supply Ability 1KK pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Area 381.888(W)×214.812(H) Mm Pixel Format RGB Vertical Stripe
Panel Brand BOE Response Time 30 Ms
Brightness 300 Cd/m² Size 17.3"
Service ODM, OEM, Customization Storage Temperature -20 ~ 60 °C
High Light

640x480 17 Inch LCD

,

640x480 17 Inch LCD TFT Display

,

LCD TFT Display 800:1 Contrast Ratio
Leave a Message
Product Description

17" Shenzhen 640x480 TFT Display with 8001 Contrast Ratio No Touchscreen

Product Description:

Our TFT Display Module is the ideal solution for any application requiring a color LCD display, from industrial to medical imaging. With a 17" display size and a refresh rate of 60Hz, our product provides an excellent visual experience with a response time of 30ms. It is designed to be used in extreme environments with an operating temperature of 0-50°C. Our TFT Display Module offers a touch display with a wide range of colors, allowing you to customize your display to your exact needs. It is perfect for any application requiring a high-quality touch display.



Features:

  • Product Name: TFT Display Module
  • Voltage Supply: 3.3V
  • Resolution: 1920(RGB)×1080, FHD
  • Work Mode: ADS, Normally Black, Transmissive
  • Contrast Ratio: 800: 1
  • Display Type: TFT / IPS
  • High Brightness: Yes
  • TFT LCD Screen Module: Yes
  • LCD TFT Display Module: Yes


Technical Parameters:

Parameter Value
Response Time 30 ms
Operating Temperature 0 ~ 50 °C
Brightness 300 Cd/m²
Active Area 381.888(W) × 214.812(H) mm
Interface Type EDP 30 pins connector
Panel Brand BOE
Voltage Supply 3.3V
Pixel Format RGB Vertical Stripe
Touchscreen Without
Viewing Angle 85/85/85/85


Applications:

DYMONA's MxxxxX60-156-0601 LCD TFT Display Module is a cost-effective solution for a wide range of applications. Featuring BOE's FHD resolution of 1920(RGB)×1080 and an impressive brightness of 300 Cd/m², this high-brightness TFT display module is sure to deliver stunning visuals. With its lightweight and slim design, this LCD TFT display module can easily fit into even the most confined areas. It also provides exceptional color accuracy and wide viewing angles for superior image clarity. Moreover, it is available in different sizes and can be customized to meet your specific needs. With its excellent performance, superior quality, and reliable service, this LCD TFT display module from DYMONA is sure to be a great choice for any project.



Customization:

DYMONA MxxxxX60-156-0601 17.3" High Brightness IPS TFT Display Module

This 17.3" TFT/IPS display module from DYMONA is designed to work in ADS, Normally Black, Transmissive mode with a 3.3V voltage supply. It features a high brightness, a pixel format of RGB Vertical Stripe, and is perfect for a variety of applications.

Product Specifications:
  • Brand Name: DYMONA
  • Model Number: MxxxxX60-156-0601
  • Place of Origin: Shenzhen
  • Size: 17.3"
  • Voltage Supply: 3.3V
  • Work Mode: ADS, Normally Black, Transmissive
  • Display Type: TFT / IPS
  • Pixel Format: RGB Vertical Stripe


Packing and Shipping:

TFT Display Module Packaging and Shipping:

  • The module is packed into a foam-lined cardboard box.
  • A layer of bubble wrap is placed around the module.
  • The box is sealed with packing tape.
  • The box is labeled with shipping information.
  • The box is shipped by air, sea, or land transit.


FAQ:

Q: What is a TFT Display Module?
A: A TFT Display Module is a type of LCD display which uses thin-film transistor technology to improve image qualities such as contrast and brightness.
Q: What is the brand name of this TFT Display Module?
A: This TFT Display Module is made by DYMONA.
Q: What is the model number of this module?
A: The model number of this module is MxxxxX60-156-0601.
Q: Where is this product made?
A: This product is made in Shenzhen.
Q: What types of images can the TFT Display Module display?
A: The TFT Display Module can display various types of images, such as text, graphics, and video.
