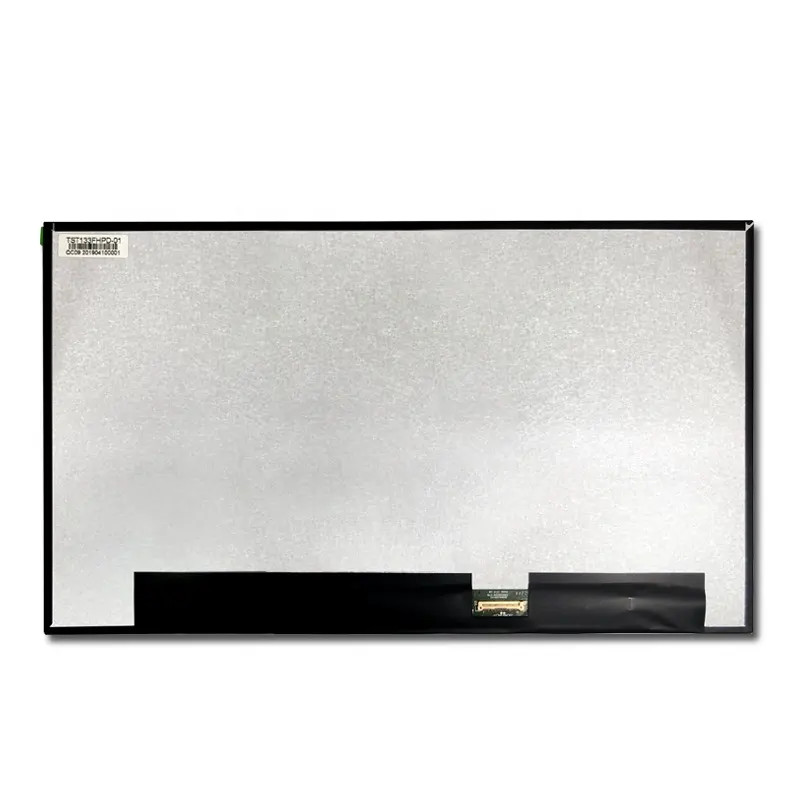

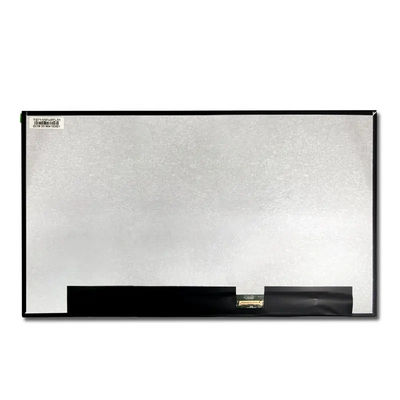

HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module

  • HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module
  • HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module
  • HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module
  • HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module
Place of Origin Guangdong,China
Brand Name DYMONA
Certification CE,SGS,ROHS,ISO9001
Model Number TST133PHD-DMN
Minimum Order Quantity 1pcs
Price Negotiable price
Packaging Details Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time 5-7 days
Payment Terms L/C, T/T,Payyal
Supply Ability 1KK pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supplier Type Manufacturer Active Area 293.76x165.24mm
Resolution 1920xRGBx1080 Dots Brightness 350
Service ODM OEM Accept Interface Type 89/89/89/89
High Light

HD 13.3 LCD Screen 1920X1080

,

EDP 30pin Interface LCD Display Module

,

HD 13.3 LCD Screen EDP 30pin
Leave a Message
Product Description

HD 13.3 inch TFT LCD Screen 1920X1080 with EDP 30pin Interface LCD Display Module





Product Description



Item
Specification
Display Mode
13.3''/α-Si TFT/IPS/Transmissive/Normally Black
Part NO.
TST133PHD-DMN
Resolution
1920x(RGB)x1080
Outline Size
300.26x188.25x2.6mm
Active Area(WxH)
293.76x165.24mm
View Direction
All O'clock
Pixel Pitch
0.153x0.153
Interface
EDP 30PIN
Backlight
56LEDs, 160mA, 21.5V
Surface Lumiannce
220nits
Surface Treatment
Anti-glare, coating : 3H
Operating Voltage
3.3V
Operating Temperature
-0℃~50℃
Storage Temperature
-20℃~60℃



13.3 inch display 1920*1080 TFT LCD liquid crystal display panel.It is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel

and a driving circuit.This TFT LCD has a 13.3 inch diagonally measured active display area with (1920 horizontal by1080 vertical pixe l) resolution.





Our service

TFT LCM Module Standard and custom make from 4.3" TFT to 43" TFT.



Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.



Delivery Guarantee:

Large Stock System, We have our own warehouses in Shenzhen and AnHui, with comprehensive supply lines.



After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module 0



HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module 1

Please let us know your requirements on Screen:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you!



HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module 2

HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module 3
