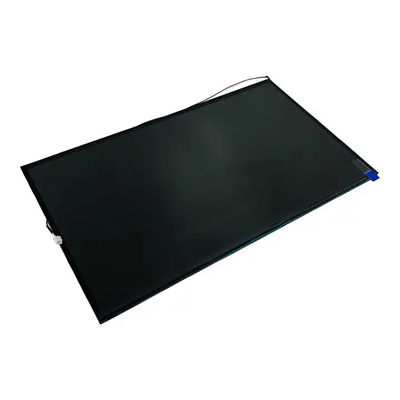

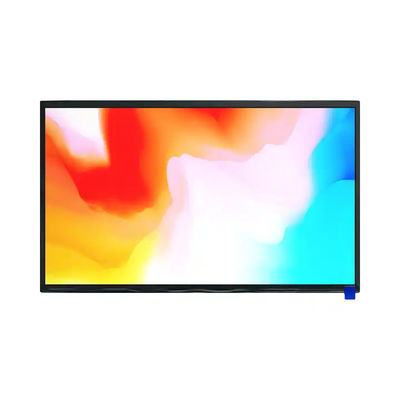

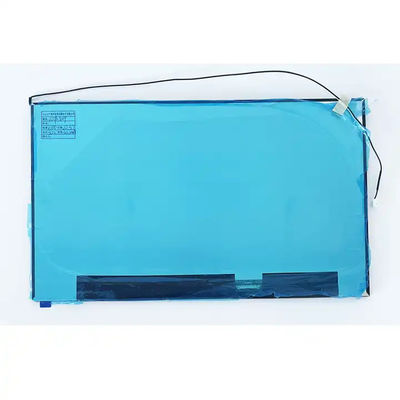

High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin

Place of Origin Shenzhen
Brand Name DYMONA
Certification CE,SGS,ROHS,ISO9001
Model Number MxxxX-156-0601
Minimum Order Quantity 1pcs
Price Negotiable price
Packaging Details Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Touch Screen Without Resolution 1920*1080
Brightness 1000cd/m2 Contrast Ratio 1000:1
Origin Place Shenzhen Service ODM / OEM
High Light

1000 nits 13.3 lcd screen


fhd 13.3 lcd screen


high brightness 13.3 30 pin screen

Leave a Message
Product Description

High Brightness 1000nits 13.3 Inch TFT-LCD Module FHD 1000:1



Product Description

Display size
Supplier Type
Signal interface

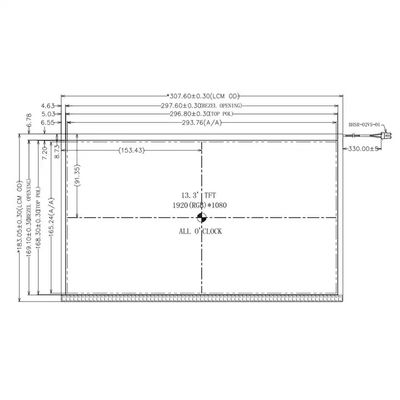

Active area
293.76(H)*165.24 (V)
1000 cd/m² (Min.)
CELL Brand
Contrast Ratio
1000: 1
View angle
85/85/85/85 (Typ.)(CR 10)
Display mode
Normally black
Pixel arrangement
RGB Vertical stripe
Operating Temperature
-20 ~ 60 °C
Storage Temperature
-20 ~ 60 °C

Main advantage:

1, High Brightness: With a brightness rating of 1000 units (candelas per square meter), this display module offers exceptional luminance. This high brightness level ensures excellent visibility even in bright ambient light or outdoor environments. It allows the screen to remain clear and legible, reducing glare and enhancing the viewing experience.
2, FHD Resolution: The display module features a Full HD (1920x1080 pixels) resolution. This resolution provides sharp and detailed visuals, making it suitable for multimedia content, gaming, productivity tasks, and general computing. The high pixel density ensures crisp text and vibrant images.
3, Application Versatility: The high brightness, FHD resolution, and contrast ratio make this display module suitable for a wide range of applications. It can be used in laptops, portable monitors, digital signage, outdoor displays, automotive displays, or any other application where clear visibility and vibrant visuals are essential.
Overall, the high brightness 1000nits 13.3-inch TFT-LCD module with FHD resolution and a contrast ratio of 1000:1 offers a powerful display solution suitable for applications that require excellent visibility and vibrant visuals in various lighting conditions.


High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 0

More details

High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 1



Automotive products,

Medical equipments,

Consumer electronics like laptops, monitors, etc

IoT products,

Smart wearable devices,


Smart home applications,

White goods,

Industrial and integration equipment,

Communication devices,

Digital signage and displays etc.

High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 2High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 3



More Customization

make the customization based on the customer's requirement

High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 4

High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 5

High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 6

Custom Process
process detail
1> Customer requirements: Size, resolution, brightness, interface, CTP specification, and other requirements, or to draw, a sample for evaluation.
2> Supplier evaluation and offer solutions Evaluate and propose solutions according to customer requirements.
3> Communicate and confirm solutions The customer confirmed the solution
4> Provide quotation and confirm payment Provide reasonable and advantageous tooling cost quotations and confirm product unit prices. The customer pays a sample fee
5> Confirm the drawing Confirm the final version drawing according to the customer's request or the drawings provided. and sign back
6> Production samples Producing samples according to the drawings confirmed by both parties
7> Sample confirmed Deliver samples to customers for confirmation
8> Sample debugging and modification If necessary, technical support will be provided for debugging or modification of samples
9> Production Confirm the final order quantity and unit price of the customer, and then arrange production according to the confirmed samples within the agreed time.
10> Deliver Product delivery according to customer requirements or industry standards


Please let us know your requirements on Screen:

1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference. we will quote the same model # or recommend alternatives when we can't provide the exact model or when we think there is a better choice for you!

Tip: all of our products can be with or without touch, whatever you choose. Backlight brightness and

interface can be customized according to your requirements.



About the Us


DMN DISPLAY was established in 2014.

With two factories: One located in Shenzhen, China.

Another Factory is located in Anhui Province, China.

Our business scope covers TFT LCD displays /

LCM products/ Capacitive touch screen, etc production

and sales.


High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 7


High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 8


Support and Services


  • Technical Support:
    • Provide online technical support through email and phone
    • Guidance on product installation and configuration
    • Software and hardware troubleshooting assistance
    • Fault diagnostics and repair advice
  • Service:
    • 1-year warranty on all products
    • Regular maintenance and servicing of products
    • Replacement of faulty parts
    • General advice and guidance on product usage
    • Onsite repair and installation services
      High Brightness 1000 Nits 13.3 Lcd Screen Tft Module Fhd 1000/1 30 Pin 9



Packing and Shipping


Antistatic bag + Bubble bag + Foam box + Carton box





1. Where can I get the datasheet, initialization code, and other technical files?
Please contact our sales directly or send me an email, and we will send the datasheet by mail.

2. Is there a Touch Panel (Touch screen) on the display?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need it.
Resistive touch panel - RTPs are the most common and lowest-cost touch panel technology. They are activated by contact with any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.

Capacitive touch panel – Allows multi-touch operation as seen on smart cell phones or tablets, and allows more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.

3. Is there a possibility of making a brighter display?
Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high
brightness backlight for you. And make it sunlight readable.

4. How to Understand Stock for Sale?
Stock levels are based on the item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact our sales for price, stock availability, and lead time

5. Never End of Supply, Our Long-term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. DYMONA gives the promise to every customer of every product we sell on this website. We promise a long-term continuity of supply and will never end supply.
Some controller ICs may stop production, we'll try our efforts to find completely compatible ones. If the equivalent is
unavailable, we'll make the new tooling and use the most similar IC as a replacement. So you don't have to worry even if your research time is very long.

6. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.

7. I am new to developing LCD modules.
Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get started.
